MSX One Exterior Coupled
Our MSX One Exterior Coupled is a decorative exterior exposed roll shade built to withstand the elements. Cover a large span of windows, sliding doors, or patio openings while lessening gaps and avoiding costly freight charges. Choose from a wide range of fabric options, hardware finishes, mounting selections to attain your outdoor style and functionality needs.
Key Features
- 5 Year Total Trust Warranty
- Matter Over Thread Smart Motors Available
- Whisper Quiet Smart Motors
- Manual, Battery, Hardwired, and Plug In Control Options
- Option To Internalized Antenna Wires
- Hand-crafted to order in the U.S.A.
- Personalized MSX Easy Install Template Available
DISCOUNTS ARE SHOWN IN YOUR CART SUMMARY OR AT CHECKOUT!
Quantity:
What's In The Box?
Custom Solid Foam Templates: Precisely cut to match your hardware’s width and height for effortless setup.
Complete Installation Kit, which includes:
- MSX Easy Install Template
- Marking Pencil
- Level
- T25 Drill Bit
- T25 Exterior Grade Screws And Washers

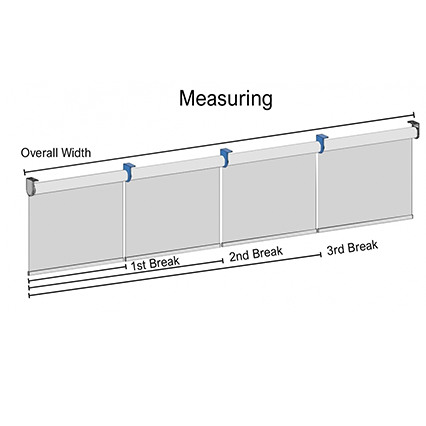

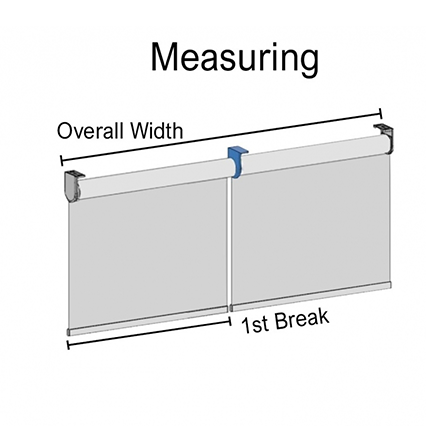

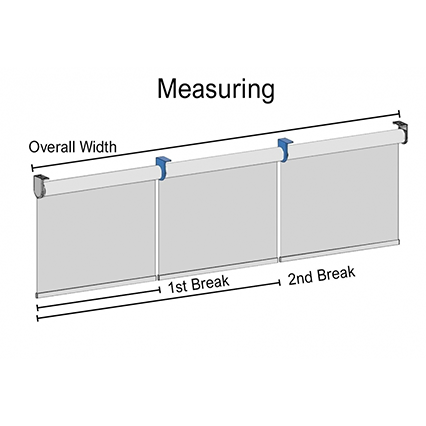

How To Measure:
- Overall Measurement: Measure the width of the overall space you are covering with your coupled shade. Remember this includes the shades hardware end to end. This is not a fabric measurement. Deduct 1/8 inch if inside mounting for wiggle room.
- First Break Measurement: Measure from the start of your overall measurement on the left, to the center of your first break moving to the right.
- Second Break Measurement: Again, measure from the start of your overall measurement on the left, to the center of your second break moving to the right.
- Third Break Measurement: Again, measure from the start of your overall measurement on the left, to the center of your third break moving to the right.
- That's It! These measurements give us everything we need to make your coupled shade. We figure your final section to the right by subtracting your break measurements, with your overall measurement. Your overall, less your break measurements, equals your final section on the right!
- Remember: Any control side panels must be wide enough to fit your motor - 32 inch for quiet battery - 29 inch for 120V - and 22 inch for our new wired/plugin 24V Quiet Matter Motor. Also each coupled section cannot exceed 105", as this would mean it would need to ship freight. If needed, reach out for assistance.
